Projects

NASA ALLGO competition

Finalist in the NASA allgo competition. Semi-inflatable crane for the 2024 Artemis moon missions. Placed 5th out of 132

tubr

HYDROGEN FUEL CELL

Entry for a 2021 hydrogen design challenge. Created as a replacement for expiring diesel generators in northern Canada. Modeled in Fusion360, rendered in blender, and uploaded to GRABCAD for anyone to download and improve on.

large
large (1)

Clean energy BC

1:250 scale model of the Corra Linn Dam. The model was created from over 3,000 blueprints for the 1930’s era facility.

This watertight model was used for dive analysis, emergency planning, employee training, and planning for future upgrades.

Names
dam

LIVE EDGE TURNTABLE

Live-edge turntable. Doubles as a bluetooth speaker

LiDAR Drone

Lidar puck mount for a surveying drone. Designed in Fusion360, and printed out of nylon. Weight distribution, lidar visibility, and size limitations made this a challenging design project.

20200126_075625

KAYAK PROSTHETIC

Carbon fibre prosthetic arm attachment for a kayak paddle. The attachment matches the user’s wrist length, and allows for the same lateral and rotational movement.

20190802_124424
20190724_115314

AIR COOLED MOUSE

Entry for a computer mouse design challenge. Designed in AutoCAD, animation done in Blender.

large (1)
large (2)

Selkirk Capstone I

2nd year design project. The robot was 3D printed and designed in AutoCAD. Automated planting robot concept

Video: https://youtu.be/peXm98zEhJ0

IMG_8522
robosnip2

PRV Microhydro station

A micro hydro project, built out of recycled sea cans and small scale Pelton turbines. The PRV station is designed to help phase out the large amount of diesel generators used throughout northern Canada.

www.austinengineering.ca

LdORTqMXpOs

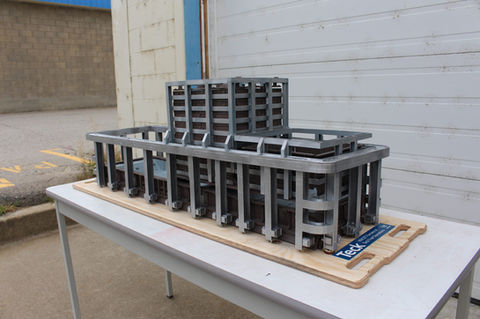

Kivcet model

A large 3D printed scale model of an eight storey furnace in the Kootenays. This model is used for shutdown planning and employee training.

Each one of the 250pices is magnetic, and can be taken apart easily.

kiv02
IMG_9099

LADDER RACK

This ladder rack was designed from scratch using AutoCAD and Fusion360. Built using waterjet cutouts, extruded aluminum rails commonly found on CNC machines.

20200125_133436
truck shop dwg

Burning Man 2019

This 8ft popup book was built for Burning Man 2019. The entire book and gazebo had to be collapsable to make the journey down to Nevada. Our team consisted of 8 people.

bATTERY pACK

This 48v 42ah universal battery pack was created out of two E-bike batteries. It can output the full 48v, or step down to 12v, and includes usb chargers. The two cell setup allows solar panels to charge one cell, while the other cell outputs.

20200802_220204

TOOL HOLDERS

TIG welding and waterjet. These two tool caddies were built as part of a level 1 machinist course. Both were designed in Fusion360, and cut out of a sheet of 1/8th aluminum.

20200802_220120
small stations

LIVE EDGE DESK

Cedar slab with aluminum edges. Slab was machined flat on a Shopbot CNC, and aluminum edges were cut on a plasma table. Plasma toolpathing was part of the machinist level 1.

20200702_174606
20200702_182545

3d Rendering

Freelance rendering and product design Companies shown: podtech.com, smrt1.ca



mp2
mp1
closeangle
arduinoboard

Electric Bike

Two wheel drive electric bike. 52v 30ah battery, 60km range. Designed in AutoCAD, cut out of 1/8 aluminum



20210513_103928
bike panels

Fish Bike

9ft long articulated fish bike. Built for burning man 2019. Cut out of 1/4plywood



1
4

3d scanned casts

This cast was designed for the hind leg of a German Shepherd, and was printed in a nylon rubber composite.The material is more breathable and lighter than a plaster cast

cast render
foot

Scanner cases

Two cases for a structure sensor 3D scanner. Grip and tripod mount.

Screen Shot 2018-02-22 at 12.44.58 PM
34385725_1910699492294053_355620380120973312_n

Selkirk Capstone II

Second year capstone project. Study of modeling, storyboarding, texturing, animation, lighting, rendering, sound design, and post processing effects, using a 3D modeled spacecraft.

Screen Shot 2018-04-07 at 3.13.24 PM

spacex office accessories

These items are posted for anyone to download for free on Thingiverse. Coasters, Pencil holders, and a MerlinD1 engine flower pot.

All designs are open source for anyone to modify.

SpaceX1
SpaceX2

Furniture Designs I

CNC milled furniture and machine stations, all made out of 3/4in ply. Tool pathed in Vcarve.

Furn1
Furn2
Furn3

VR Flight Seat

Built for VR flight simulator games. Adjustable armrests and back position.

The seat was cut on a 4x8ft CNC machine.



Capture
Untitled-1

Electric Kayak

An experiment in building a wiring harness from the ground up. Using spare E-bike batteries, this kayak has been converted to electric. 100km range, adjustable steering and throttle control.

eYak2
